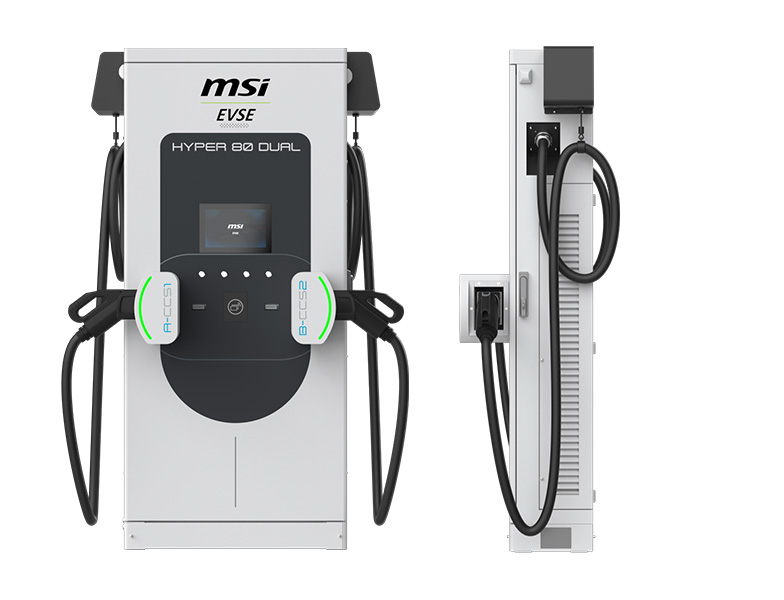

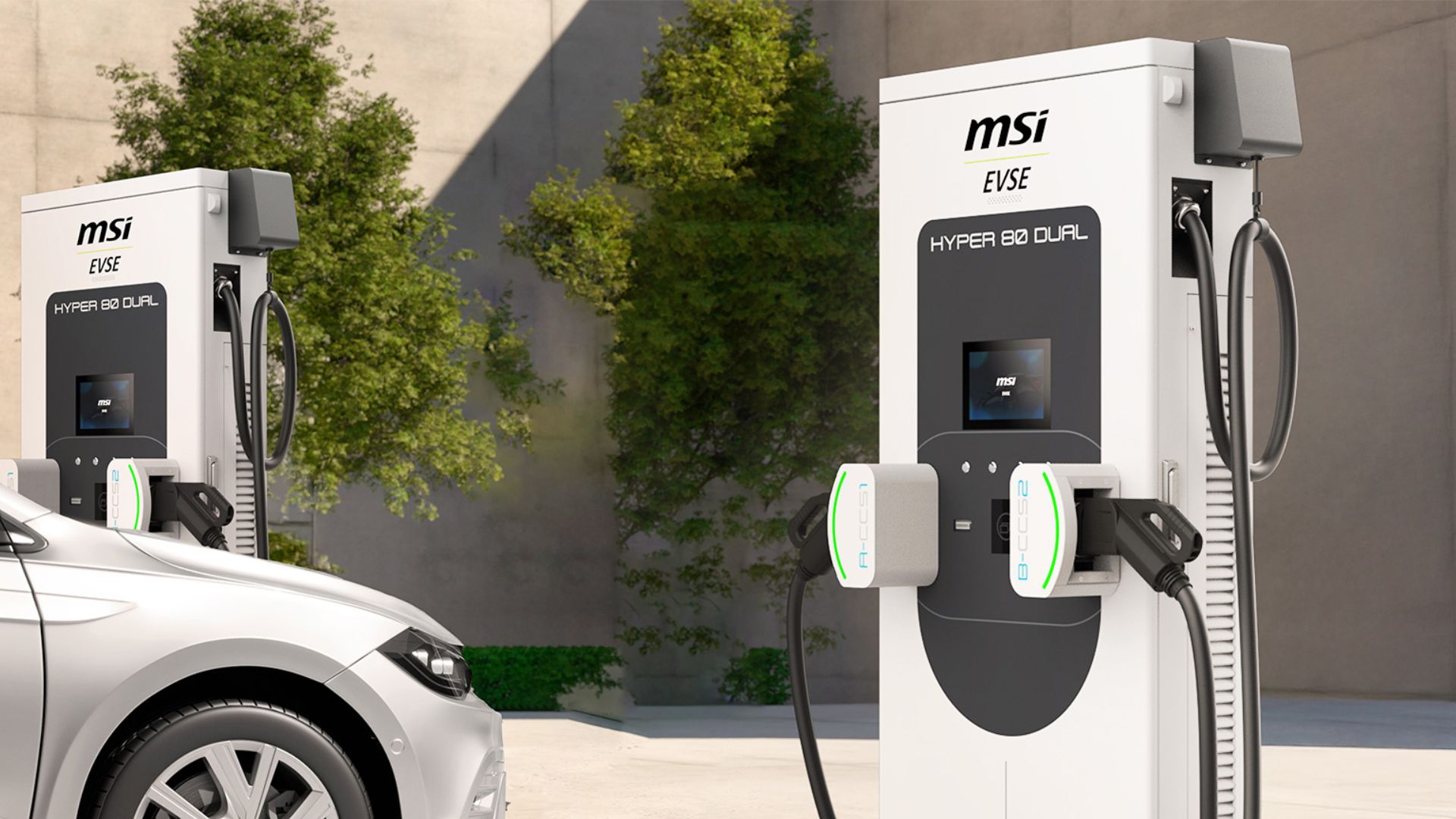

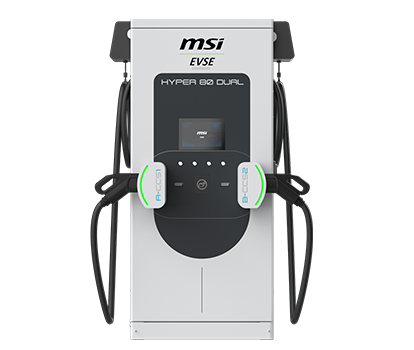

Streamlined Footprint for Fast Charging
Ultra-slim dual-connector fast charger with ISO 15118 Plug & Charge support, modular service access, and intelligent power sharing for fast, reliable commercial charging.
1
2
3
4
5
6
7
10.1" Display
Plug & Charge
(ISO 15118)
Versatile Payment Options
Front Door Maintenance
Clean Cable Management
Ultra-Slim Footprint
Dynamic Power Distribution
- Input Rating
- 380–415 V AC, 50/60 Hz, Three-phase (L1, L2, L3, N, PE)
- Power Factor
- >0.99
- Efficiency
- ≥96%
- Power Output
- 80 kW (Max)
- DC Output Control
- Dynamic Output
- DC Output Voltage
- 200–1,000 V DC
- DC Output Current
- 200 A (Max)
- Charging Connectors
- CCS1 / CCS2 options
- Electrical Protection
- OVP / OCP / OPP / OTP / UCP / UVP / RCD / SPD
- RCD
- Type A, 30 mA
- Display and Button
- 10.1-inch display (touch function for engineering mode); Emergency button; LED indicator; supports external 32-inch monitor via VESA mount
- Supported Languages
- English; Traditional Chinese
- Authentication
- RFID (ISO/IEC 14443 A); POS (optional)
- Meter Accuracy
- ±1%
- Network
- Ethernet; Wi-Fi 2.4 GHz; LTE (global, 700–2700 MHz)
- OCPP Support
- OCPP 1.6J
- Operating Temp.
- −30 °C to 50 °C
- Storage Temp.
- −45 °C to 70 °C
- Humidity
- < 95% RH (non-condensing)
- Altitude
- <2,000 m
- Ingress Protection
- IP55
- Enclosure Protection
- IK10 (IK08 Display)
- Noise
- < 75 dB
- Cooling
- Forced air
- Installation
- Ground Install
- Charging Cable Length
- 5 m / 16 ft 5 in
- Dimensions
- 1,800 × 800 × 300 mm / 70.9 × 31.5 × 11.8 in
- Weight
- 280 kg / 617 lbs
- Standards & Protocols
- ISO 15118-1:2013; DIN 70121:2014

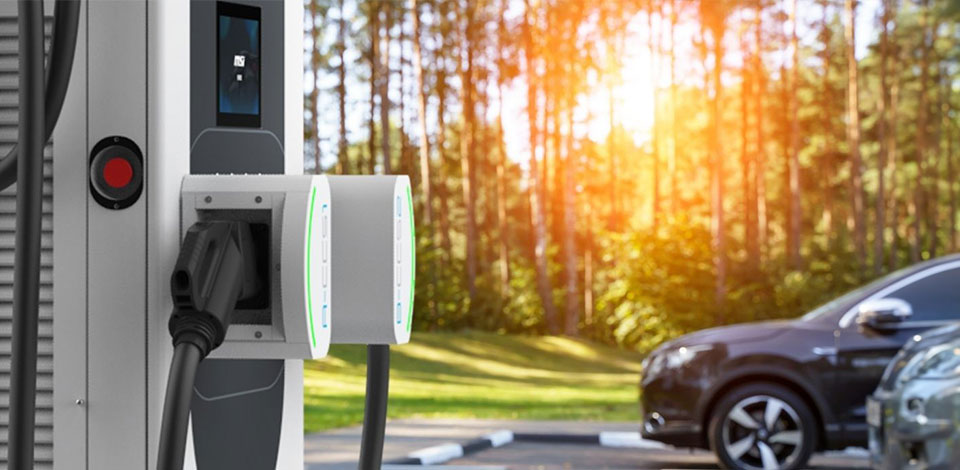

Fast & Flexible Charging
80 kW dual-connector output with CCS1 + CCS2 connectors and dynamic power distribution to charge two vehicles efficiently without wasting available power.
Seamless Payments & Remote Management
Supports OCPP 1.6J and backend integrations for station management, payment gateway connections and remote diagnostics.

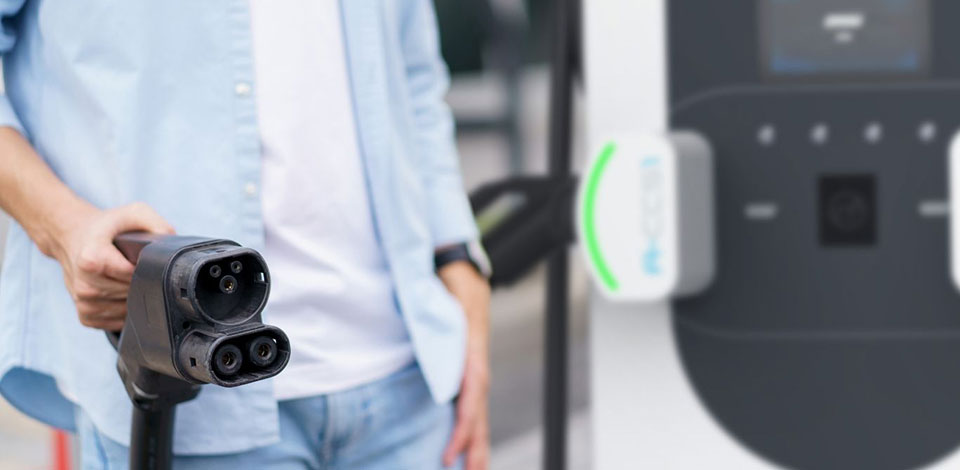

Service-Friendly Design
Ultra-slim footprint (≈300 mm depth) with front-access maintenance door and modular stackable modules for quick field service.
Commercial Site Management with eConnect
The eConnect cloud-native commercial charging platform makes large or multi-site deployments simple to operate and profitable to run. It centralises station monitoring, billing, and policy controls to keep ports online, monetise sessions, and scale without adding complexity.
