EZgo
- Plug in and charge at home or outdoors. One portable unit covers both.
- No installation required. Just connect to power and start charging.
- Up to 3.4 kW on single-phase supply.
- 1.8-inch display shows live charge status.
- Bluetooth + aConnect app to check status, adjust current, and schedule sessions in seconds.
- Built for Australian conditions. RCM compliant; UL94 V-0 flame-retardant materials; IP66 dust and water protection; 2-tonne run-over tolerance.
- USD $5 million product liability insurance for added peace of mind.

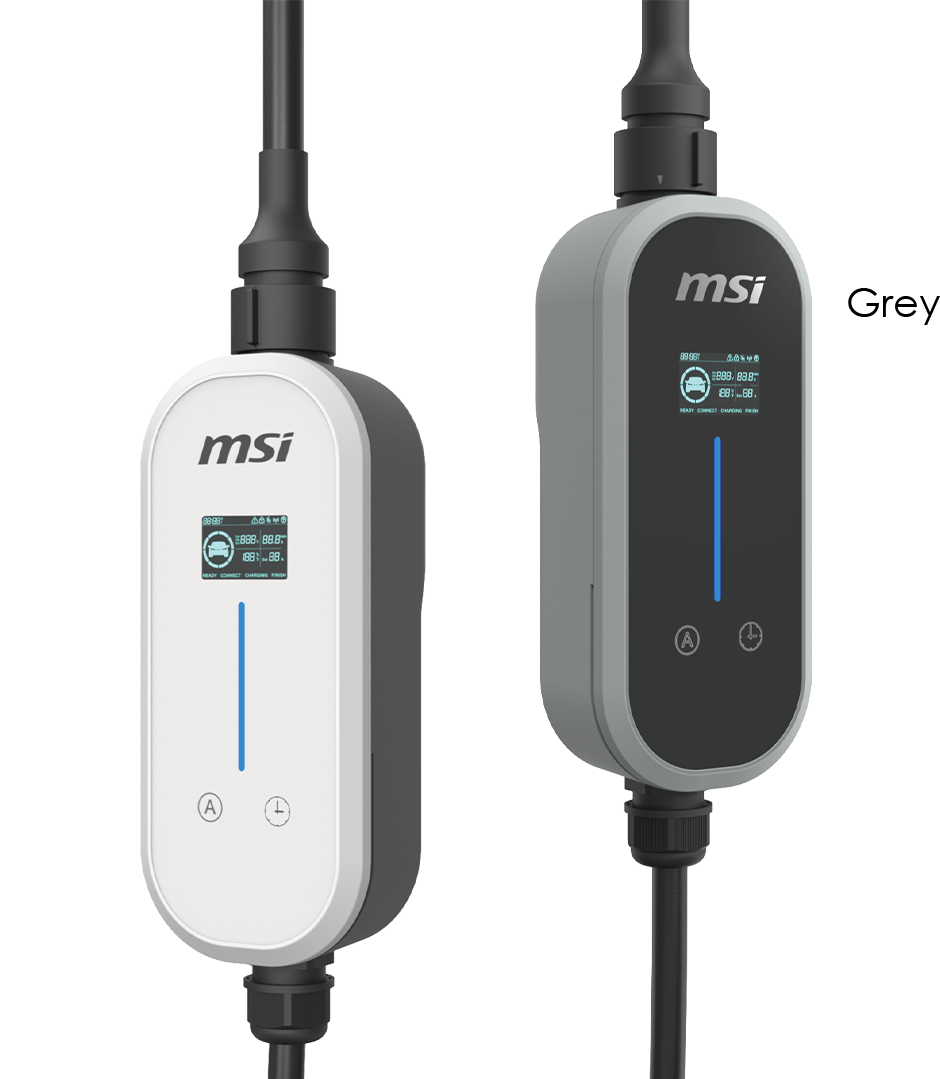

Simple and Stylish Design
Distinctive curved styling elevates aesthetics while reinforcing durability. If accidentally dropped, the form factor effectively absorbs impact to safeguard key components.
Intelligently designed to fuse form and function, pairing ergonomic contours and anti-slip accents within a minimal design.
Anti-slip totem pattern enhances handling stability.
Suitable for Outdoor and Home Use — One EV Charger Does It All
Combining the convenience of home charging with the flexibility to take it on the go whenever needed.
- Charger Holder
- Metal Hook for Cable Management
1
2
Plug-in and Charge
- Output Current10A
- Cable Length150 cm
- Output Power
2.3 kW
Charge 8hrs can drive ~110km.

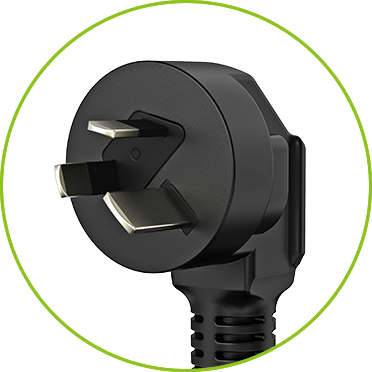

- Output Current15A
- Cable Length150 cm
- Output Power
3.4 kW
Charge 8hrs can drive ~160km.
Segmented Current Adjustment
Match different power sources and charging needs by selecting from preset current levels via onboard controls or connecting through the aConnect mobile app.

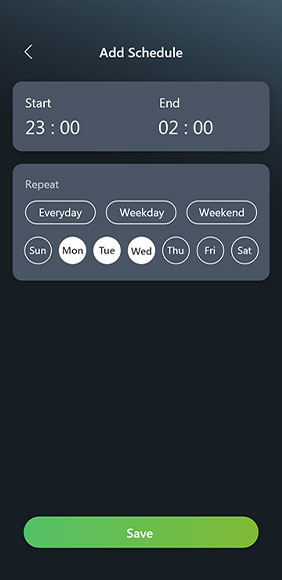

One-Button Charge Scheduling Made Simple
EZgo lets drivers set a custom ‘Start-Charge Time’ directly on the device, enabling flexible schedules that tap into off‑peak rates and trim overall energy spend for even greater savings.

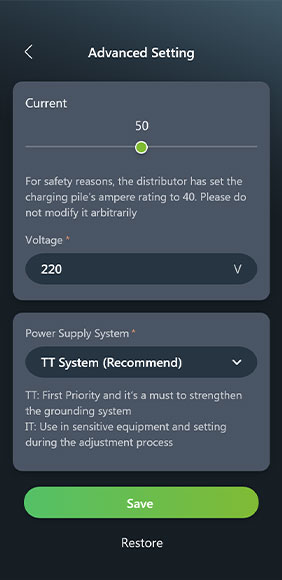

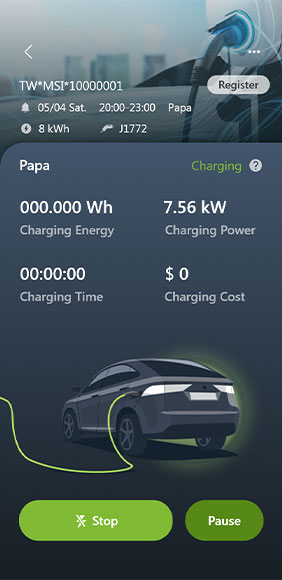

MSI aConnect App – Simple & Intuitive
Pair via Bluetooth to view real-time charge status, adjust current levels, and schedule charging sessions in seconds.

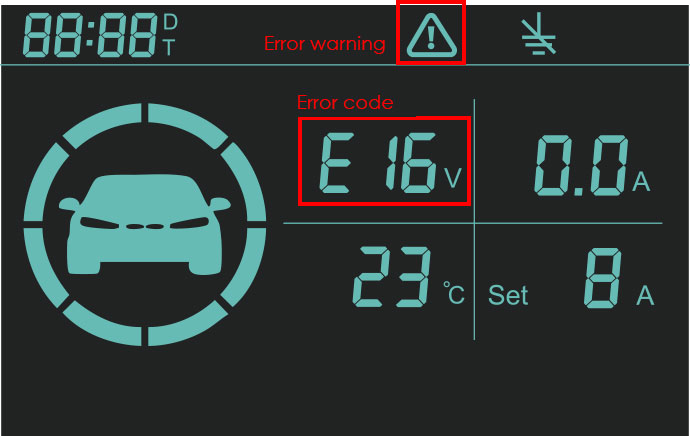

1.8-Inch Display for Real-Time Charge Status
Unlike typical portable chargers, EZgo integrates a crisp 1.8-inch screen that puts key metrics—power, current, and session progress—front and center, so you can check charging details instantly, right on the device.
LED Status Indicator
The large LED strip shows real-time charge status so you can monitor at a glance.

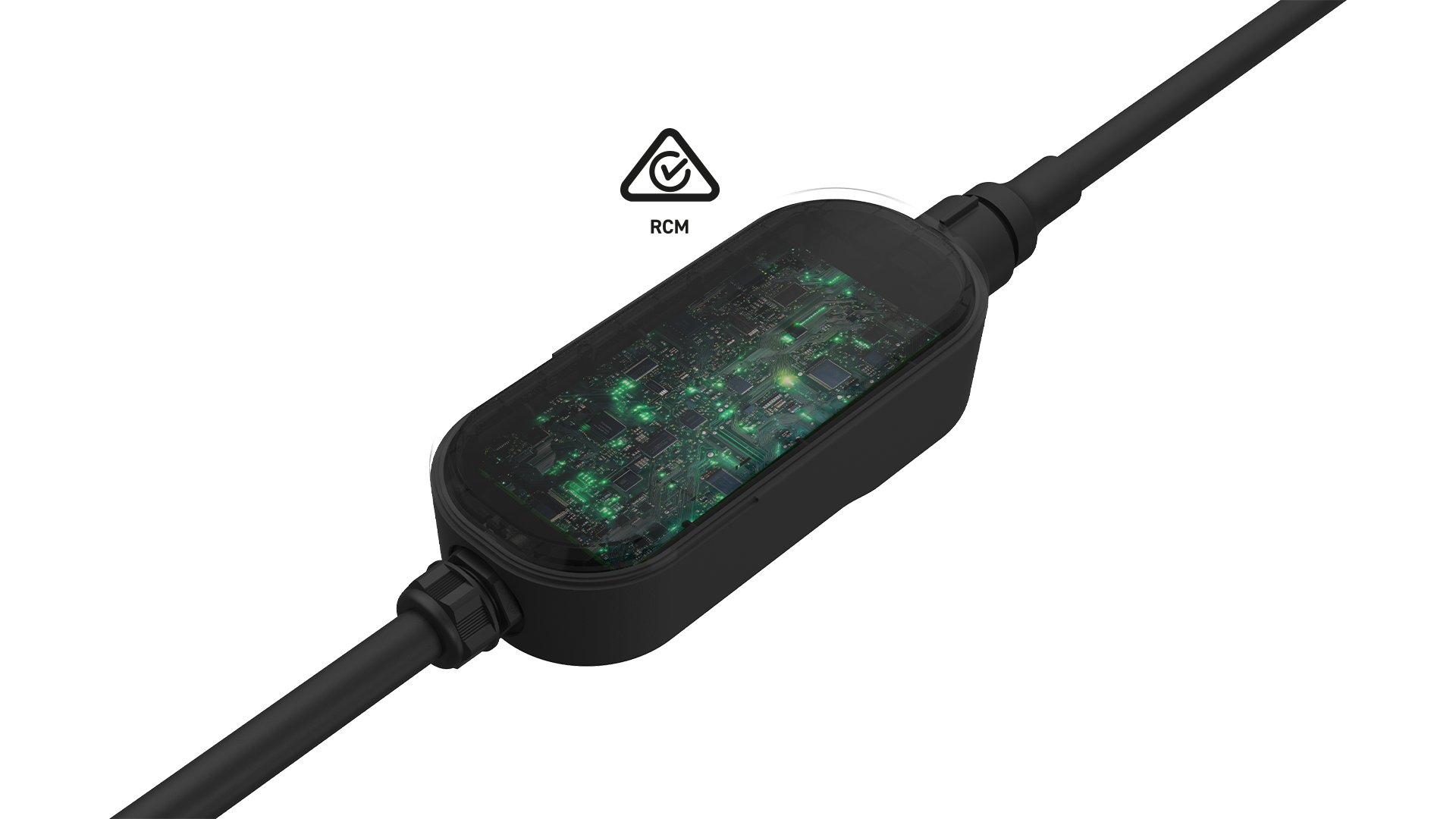

Complete Protection Suite for You and Your EV
Over-Temperature Protection
If internal heat rises beyond 90 °C, EZgo’s safety circuit instantly pauses charging to prevent overheating and keep you safe.
Ground Protection
If the ground wire is absent or improperly connected, EZgo automatically cuts power during charging to prevent over-current hazards.
Overload Protection
If output current exceeds 110 % of the preset limit, EZgo instantly cuts power to prevent damage.
Over-Voltage Protection
If input voltage rises above 120 % of the preset limit, EZgo automatically disconnects power to protect circuitry.
Under-Voltage Protection
If output current or input voltage falls below 80 % of the preset threshold, EZGO automatically cuts power to maintain safe operation.
Leakage Protection
If leakage is detected, EZgo automatically cuts power, stopping electricity flow immediately.
Electric-Shock Protection
Integrated surge suppression absorbs lightning-induced spikes, preventing any electrical damage.
100 % Safety Guarantee
Alongside a two-year warranty, MSI provides up to US $5 million in product-liability insurance—shielding users and third-party property from any product-related incidents for a truly worry-free charging experience.
IP66 Waterproof and Dustproof
Engineered with IP66-rated sealing and advanced dust barriers, EZgo thrives in humid, variable climates. Even outdoors, it runs reliably, ensuring continuous, uninterrupted charging.
Heavy-Object Compression Test Passed
Both the charger body and cable undergo rigorous compression trials, engineered to withstand loads as heavy as a vehicle without deformation or failure. This design choice guarantees reliable performance, safeguards internal components, and shields against accidental crushing.

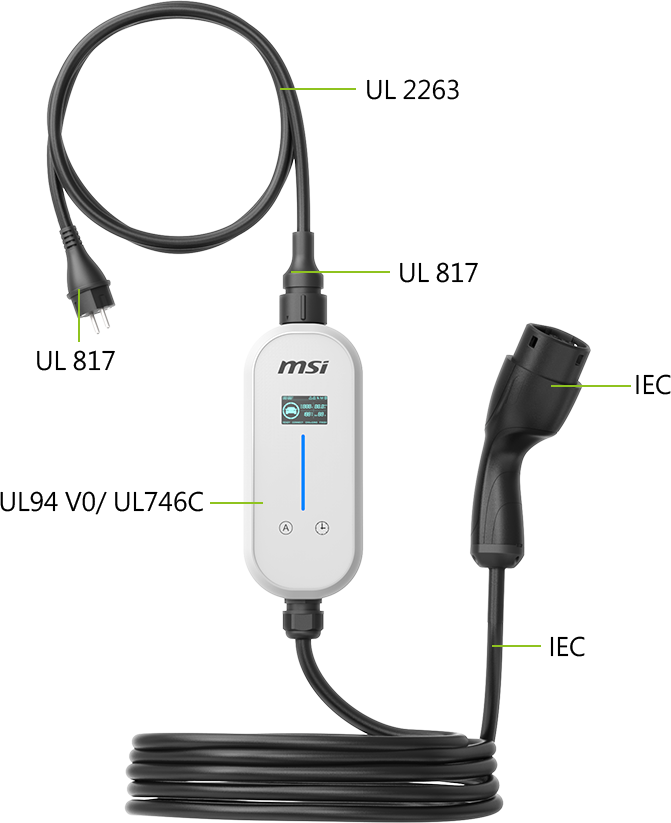

Premium Materials. Uncompromising Quality
The EZgo unit is built using high-density polycarbonate that meets the stringent UL94-V0* fire safety standard. Additionally, the enclosure materials comply with UL746C**, achieving an F1 rating for outstanding weather resistance and durability—ensuring long-term performance even under prolonged outdoor sun exposure.
The included power cords are specifically engineered for electric vehicle use and conform to the latest UL2263 international standard. They are rated for 600V operation and heat resistance up to 105°C. The plug connectors meet UL817*** requirements, offering protection against electrical faults such as overloads and short circuits, effectively reducing the risk of fire or electric shock.
Furthermore, the charging gun head and cable have obtained IEC-62196 certification, providing comprehensive safety assurance for EV charging.
- *UL94 V0 standard requires the material to stop burning within 10 seconds in a vertical flame test, without dripping flaming particles.
- ** UL746C standard covers performance tests such as high-temperature heat resistance, fire resistance, and mechanical/durability testing.
- *** UL817 standard includes connector reliability, terminal firmness, insulation integrity, pull strength, wire stripping checks, insertion and depth measurement, as well as voltage withstand testing.

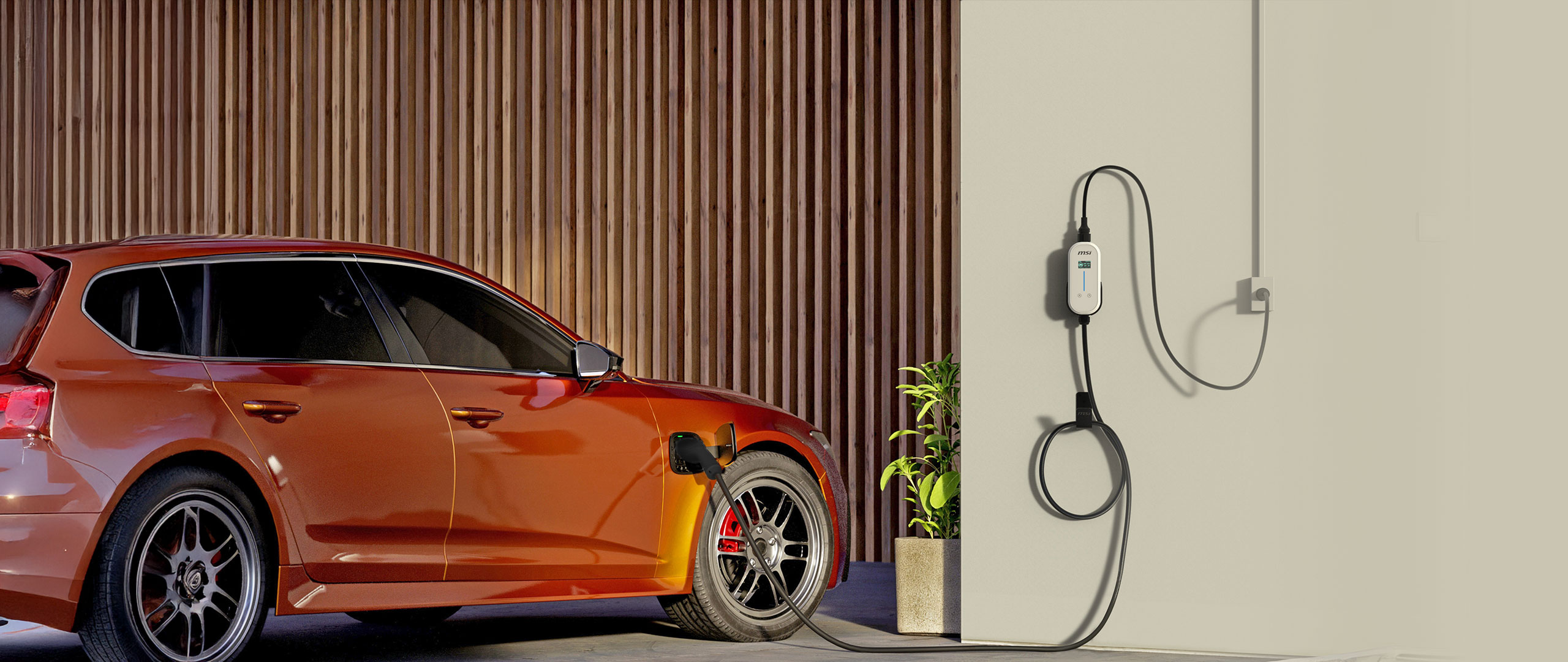

Extra-Length Cable for Zero-Stress Charging
Engineered for diverse charging setups, EZGO’s extended cable cuts the risk of interruptions from short leads, offering added flexibility and day-to-day convenience.
Specifications
| Model No. | MS-C806 |
| Output Voltage | 230V 1PH |
| Output Current | 10 A / 15 A |
| Output Power | 2.3 kW / 3.4 kW |
| Cable Type | Type 2 |
| Cable Length | 16.4 ft (5 m) |
| Grid Frequency | 50 / 60 Hz |
| Display | 1.8 in LCD |
| Dimensions | 10.6 x 29.8 x 5.3 cm (W 4.2 x H 11.7 x D 2.1 in) |
| Weight | 4 kg (8.8 lbs), including charger, cable, adapter and storage bag |
| Communication | Bluetooth |
| Certification | RCM, CE Mark (EU) |
| Electrical Protection | Built-In RCM; Under Voltage Protection, Over Voltage Protection, Over Load Protection, Over Temp. Protection, Ground Protection, Leakage Protection |
| Protection Rating | IP66, IK08 |
| Pressure Resistance | 2T (Controller); 20T (Cable) |
| Humidity | 5 % to 95 % RH |
| Altitude | < 2000 m |
| Operating Temp. | 22°F to +122°F (-30°C to +50°C)/td> |

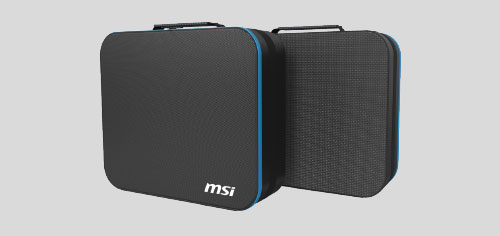

- Storage Bag
- Included
- W 36 x H 35 x D 13 cm
(W 14.2 x H 13.8 x D 5.1 in) - 490 g (1.08 lbs)

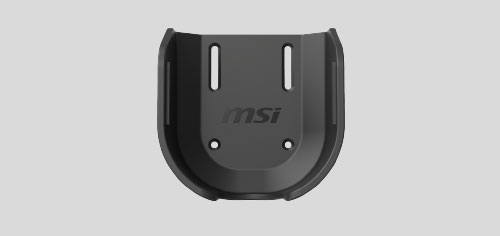

- Holder
- Included
- W 11.7 x H 11.5 x D 6.8 cm
(W 4.6 x H 4.5 x D 2.7 in) - 126 g (0.28 lbs)

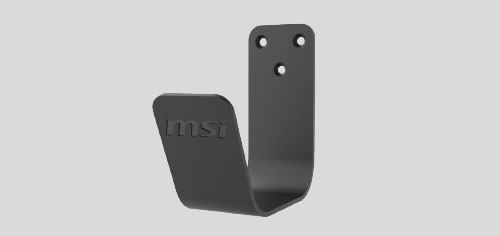

- Hook
- Included
- W 5 x H 12 x D 12.6 cm
(W 2 x H 4.7 x D 5 in) - 311 g (0.69 lbs)
